Elemental Water Response.
Ensuring quick access to clean water.
The Elemental Water Response is an efficient, portable solution to produce fresh water from any water source such as: lakes, rivers, ponds & the sea. It comes pre-assembled into a tough military grade wheels case, that includes the watermaker itself, the pre-filter and the connection hoses to the water source (10 m long).
In case there is no grid power available, the EWR can be combined with the PowerBox to generate fresh water using only the sun. The PowerBox comes fitted inside a strong case as well and includes solar panels, a Lithium battery, and a charger.
Get access to clean and reliable water using our easy to operate Elemental Water Response for disaster relief, emergency response, military use or any other temporary application. The Elemental Water Response was developed with a philosophy of quality, reliability, and efficiency and is deployable within a matter of hours for humanitarian purposes. Whereas it is not developed for long-term application, this compact desalination box can be quickly installed to supply clean and reliable water to those who need it the most.
Portable desalination powered by portable solar.
The Elemental Water Response is available in two versions: the EWR30, which produces 30 liters/h (7.9 gph) of fresh water with an electric consumption of 110 Watt only, and the EWR50, which produces 50 liters/h (13.2 gph) with an electric consumption of 240 Watt. Both units are powered by 12 V and can be connected to any external battery.
In case there is no grid power available, the EWR PowerBox is the perfect Add-On for off-grid usage. The EWR PowerBox is a solar add-on which can be used for both of the EWR units. It is assembled in a strong case as well, and includes a special Lithium battery, a charger that can accept all DC/AC standards to activate the recharging cycle of the battery, and a foldable solar panel that allows to charge the battery and power the watermakers, directly from the sun. The EWR Powerbox is therefore an ideal supplement to the EWR for off-grid applications.
EWR 30
- Capacity: 30 liters/hour – 7.8 Gal/hour
- Power Supply: 12 VDC
- Consumption: 110 W – 9 A
- Weight: 38kg – 84 lb
- Membranes: n.1 2.5″ x 21″
- Filters: 50 mesh strainer – 5 micron melt blown 5″ x 2.5″
- Inlet Hose: i.d. 16mm lenght 10mt
- Discharge Hose: i.d. 16mm lenght 5mt
- Permeate Hose: i.d. 16mm lenght 5mt
- Suction Capacity: horizontal 10mt – vertical 1mt
EWR 50
- Capacity: 50 liters/hour – 13.2 Gal/hour
- Power Supply: 12 VDC
- Consumption: 240 W – 20 A
- Weight: 48kg – 106 lb
- Membranes: n.2 2.5″ x 21″
- Filters 50 mesh strainer – 5 micron melt blown 5″ x 2.5″
- Inlet Hose: i.d. 16mm lenght 10mt
- Discharge Hose: i.d. 16mm lenght 5mt
- Permeate Hose: i.d. 16mm lenght 5mt
- Suction Capacity: horizontal 10mt – vertical 1mt
PowerBox
- Battery type: Lithium-ion (LiFoPO4)
- Capacity: 40 Ah
- Stored energy: 512 Wh
- Nominal Voltage: 12.8 V
- Weight: 25kg
- Safety Features: Overload, Short-circuiting, Temperature
- Solar Panel Power: 120 Watt
- Solar Panel Voltage: 12 VDC
- Solar Panel Cells: 3×12
- Solar Panel Dimensions (unfolded): 1280mm x 540mm
Get a quote.

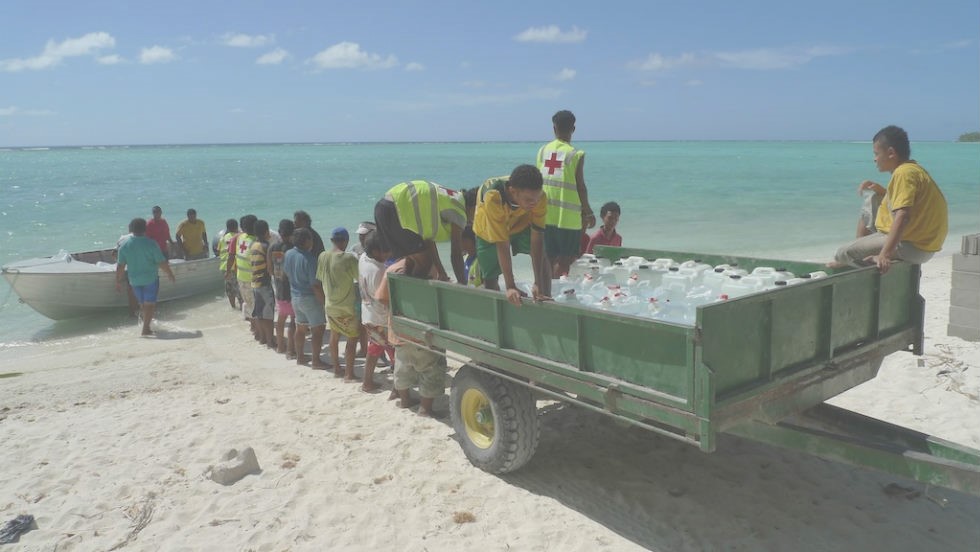

Crisis response in the Philippines.
Elemental Water Response used for temporary water supply.
The Local Government Unit of a region in the Philippines had been facing numerous disasters in which the water supply was strongly affected. Cyclones would put vulnerable communities at the faith of rainfall and unsafe water supplies, leading to costly and logistically challenging operations to get safe water to the people in need.The LGU decided to go for resilience and now has a series of Elemental Water Response units and Powerboxes ready for emergency situations. This allows both the LGU and the communities to be prepared for disaster, rapidly providing clean water from the sea & sun when required.
